Garbled render

Post Reply
MichaelS
Posts: 3
Joined: Fri May 15, 2020 12:16 pm

Garbled render

Post by MichaelS » Thu Jul 02, 2020 12:11 pm

Have built pptx file, but on going to slide show get several things happening :

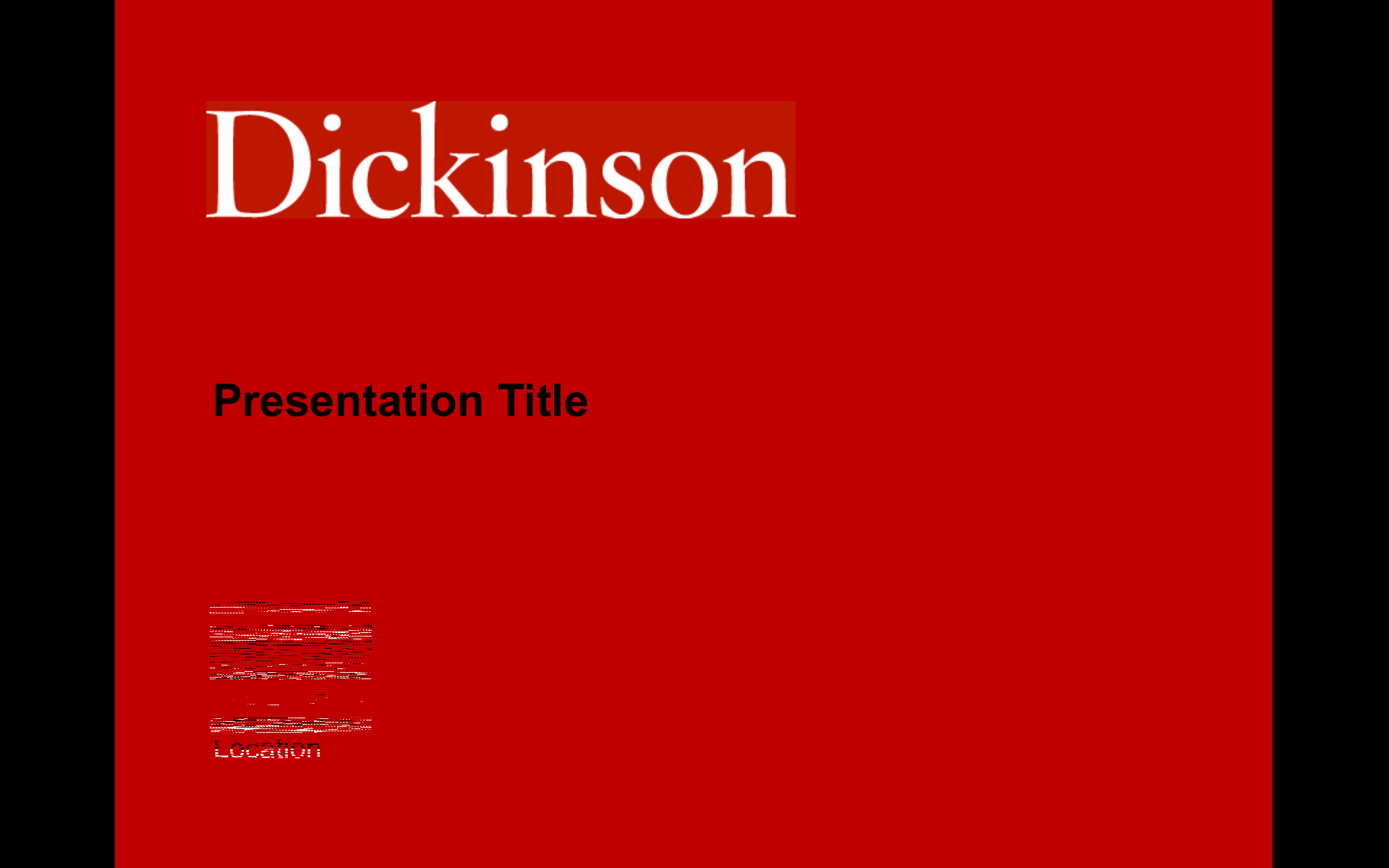

(1) scrambled colours and "line scramble" (similar as per bottom left hand corner of attached screenshot from "Dickinson" ppt)
(2) on first render of Dickinson title page the text "Presentation Title" is missing, but appears after scrolling forwards & backwards through file.

Even starting from a blank page in Presentations with a two-box blank slide, the text in the "Title" box does not render when pressing F5, despite looking OK in the editing mode.

When I have coloured text, it has ended up with a rainbow patterning in Slide show.
No such problems with my own file in Libre Office 6.1

A similar problem to this "line scramble" has just occurred in PlanMaker, again with an xlsx which renders OK in LO 6.1.

1920 x 1080 lenovo monitor on desktop computer, using DVI connection, Linux Mint Cinnamon 18.3
Attachments
Screenshot from 2020-07-02 10-58-27.png

SuperTech
SoftMaker Team
SoftMaker Team
Posts: 1425
Joined: Wed Mar 11, 2020 5:31 pm

Re: Garbled render

Post by SuperTech » Sun Jul 05, 2020 7:52 pm

Thanks for reporting this problem. Please share the associated file of Presentations 2021 in which you are getting this problem so that we can do further investigation for resolution.

If you want to send it to us privately, please send us an e-mail to forum[at]softmaker.de

Please also include the forum URL of this topic so that we can trace your e-mail.
https://forum.softmaker.com/viewtopic.php?f=391&t=20239

SuperTech
SoftMaker Team
SoftMaker Team
Posts: 1425
Joined: Wed Mar 11, 2020 5:31 pm

Re: Garbled render

Post by SuperTech » Fri Jul 10, 2020 10:21 am

Thanks for sharing the file and screenshots. I tested your file in Presentations 2021 on Linux Mint Cinnamon 19.3 and it ran smoothly without any problem. I sent you a screen-recording also on your email.

Please update your graphics drivers if outdated and let us know if it fixes this problem.

If still not fixed then please share your sminfo file which you can generate by clicking on '?' > About > Write system information so that we can do further investigation on this issue.

MichaelS
Posts: 3
Joined: Fri May 15, 2020 12:16 pm

Re: Garbled render

Post by MichaelS » Fri Jul 10, 2020 12:36 pm

Reverted to original driver and then back to Intel driver.
No graphics driver newer than 3.20200609.0ubuntu0.16.04.1
Rendering still garbled in both.
Looks like incompatibility issue if it works in 19.3 but not 18.3.
Although desktop is an Intel i5-3550, I am not a complete dinosaur since Linux 18.3 is in LTS to April 2021.

Have generated & forwarded sminfo.txt from this machine by email.

SuperTech
SoftMaker Team
SoftMaker Team
Posts: 1425
Joined: Wed Mar 11, 2020 5:31 pm

Re: Garbled render

Post by SuperTech » Sun Jul 12, 2020 7:24 pm

Thanks for the update. I have forwarded all the details to our development team for further investigation of this problem.

If possible can you create a video of this problem as I did, using any screen recorder software?

SuperTech
SoftMaker Team
SoftMaker Team
Posts: 1425
Joined: Wed Mar 11, 2020 5:31 pm

Re: Garbled render

Post by SuperTech » Fri Jul 24, 2020 12:03 pm

Please try the following steps:
1. Ribbon command File | Options | System | Uncheck Use "OpenGL Engine"
2. Click Ok
3. Restart Presentations and then check your slides again.

Thanks

MichaelS
Posts: 3
Joined: Fri May 15, 2020 12:16 pm

Re: Garbled render

Post by MichaelS » Thu Jul 30, 2020 11:43 pm

Everything looks as expected now.
Many thanks.
